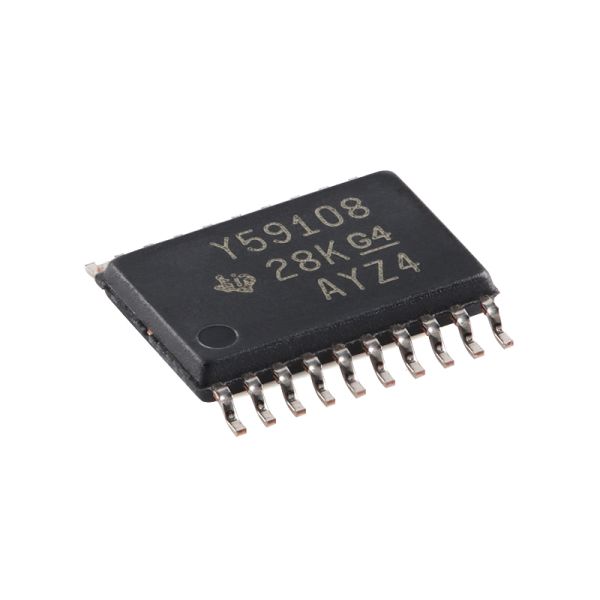

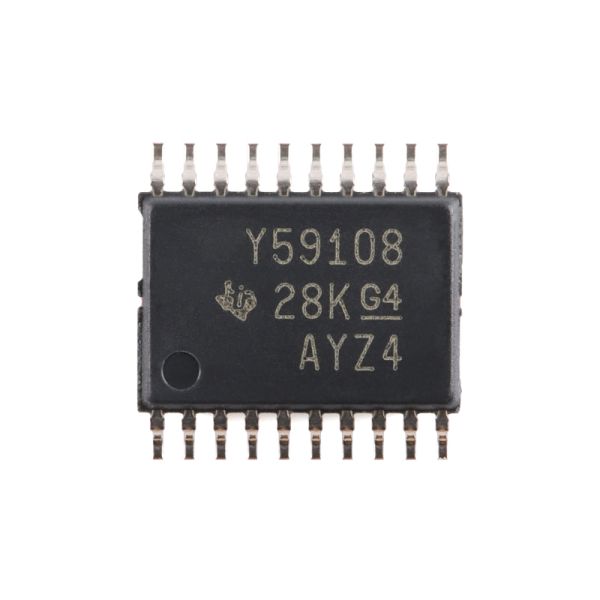

TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver

Brand Name : TI

Model Number : TLC59108IPWR

Certification : ROHS

Place of Origin : CN

MOQ : 1

Price : consult with

Payment Terms : T/T,Western Union

Supply Ability : 10000

Delivery Time : 5-8day

Packaging Details : T/R

Product Category : LED Display Drivers

Package / Case : TSSOP-20

Output Current : 120mA

Operating Voltage : 3V~5.5V

Minimum Operating Temperature : -40℃

Maximum Operating Temperature : +85℃

Maximum DC Collector Current : -

Contact Now

TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver
Product Overview

The TLC59108 is an I2C bus controlled 8-bit LED driver optimized for red/green/blue/amber (RGBA) color mixing and backlight applications.

Key Features
  • Eight LED drivers with programmable outputs (Off, On, Brightness, Group Dimming/Blinking)
  • 25-MHz internal oscillator requiring no external components
  • 1-MHz Fast Mode Plus compatible I2C bus interface
  • Eight constant-current output channels
  • Internal power-on reset and active-low reset
  • 256-step (8-bit) linear programmable brightness per LED output
  • Noise filter on SCL/SDA inputs with no glitch on power up
  • 256-step group brightness control and group blinking
  • Supports hot insertion
  • Four hardware address pins allowing 14 devices on same I2C bus
  • 3.3-V or 5-V supply voltage operation
  • Software-programmable I2C bus addresses and software reset feature
  • Open-load/overtemperature detection for individual LED error detection
  • Constant output current adjustable through external resistor (10mA to 120mA)
  • Maximum output voltage: 17 V
Applications
  • Gaming systems
  • Small signage displays
  • Industrial equipment
Device Information
Part Number Package Body Size (Nom)
TLC59108 TSSOP (20) 6.50 mm × 4.40 mm
TLC59108 VQFN (20) 4.50 mm × 3.50 mm
TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver TLC59108IPWR 8-Bit Fm+ I2C-Bus Constant-Current LED Sink Driver
