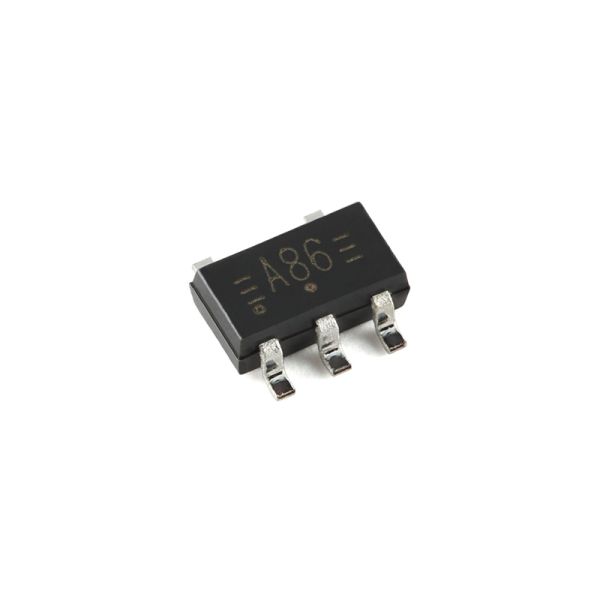

74AHC1G86GV,125 Single 2-Input EXCLUSIVE-OR Gate
This single 2-input EXCLUSIVE-OR gate features overvoltage-tolerant inputs, allowing use as translators in mixed voltage environments. The device supports wide supply voltage range and offers excellent noise immunity.
Key Features
- Wide supply voltage range from 2.0 to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Symmetrical output impedance
- Balanced propagation delays
- Input levels: CMOS level for 74AHC1G86, TTL level for 74AHCT1G86
- Multiple package options
- ESD protection: HBM class 2 exceeds 2000 V, CDM class C3 exceeds 1000 V
- Operating temperature range: -40 °C to +125 °C
Package Information
| Type Number |
Temperature Range |
Package Name |
Description |
Version |
| 74AHC1G86GW / 74AHCT1G86GW |
-40 °C to +125 °C |
TSSOP5 |
plastic thin shrink small outline package; 5 leads; body width 1.25 mm |
SOT353-1 |
| 74AHC1G86GV / 74AHCT1G86GV |
-40 °C to +125 °C |
SC-74A |
plastic surface-mounted package; 5 leads |
SOT753 |
